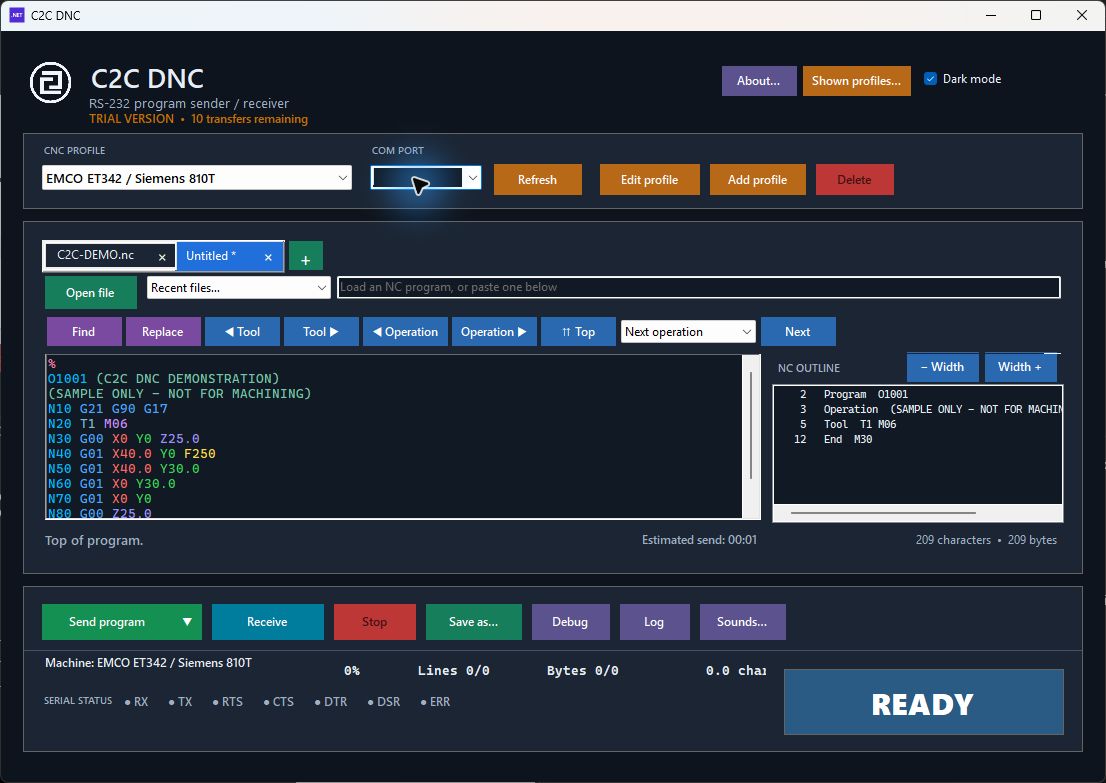

C2C DNC Windows application showing the program editor, CNC profile selection, and transfer controls.

C2C DNC — Free 10-Transfer Trial

$0.00
Skip to product information
C2C DNC Windows application showing the program editor, CNC profile selection, and transfer controls.
  • C2C DNC Windows application showing the program editor, CNC profile selection, and transfer controls.
  • C2C DNC Windows application showing the program editor, CNC profile selection, and transfer controls.
C2C DNC — Free 10-Transfer Trial

C2C DNC — Free 10-Transfer Trial

$0.00

Try C2C DNC CNC program transfer software for Windows free. Send and receive NC programs between your PC and a compatible CNC machine over RS-232, with 10 successful transfers and no time limit.

Key features

  • Send and receive CNC programs: RS-232 transfers with progress, transfer statistics, and logging.
  • Built-in NC editor: Work with multiple program tabs, find and replace text, and save edited or received programs.
  • Quick program navigation: Use the NC outline to jump between programs, tool changes, and operations.
  • Flexible partial sends: Preview and send the entire program, start from the current editor line, or start at the preceding tool change.
  • Customizable machine profiles: Save serial settings, flow control, line endings, line delays, and send/receive cleanup options for each machine.
  • 18 built-in profiles: Includes EMCO ET342 / Siemens 810T, Yasnac MX-3 and i80, Haas Classic Control, FANUC legacy and 0i/16i/18i/21i families, Siemens 802D sl and 810D/840D, Fagor 8040/8055, Mazak M32/T32 and Fusion 640M, Mitsubishi MELDAS M50/M60, Okuma OSP 5000/7000, HEIDENHAIN TNC 151/155/351/355, Fadal CNC 88/88HS, and Brother TC-32A.
  • Light and dark display modes: Choose the appearance that suits your workspace.

Profiles provide starting settings; match them to your controller and cable before transferring. Mazak profiles are for EIA/ISO text programs, and the HEIDENHAIN profile uses EXT ASCII rather than FE or LSV2.

Download and extract the entire ZIP, then launch C2CDnc.exe. Requires .NET 10 Desktop Runtime and suitable serial hardware and cabling.

When ready, purchase the personalized unlimited license for CAD $25. Paid copies are prepared manually using the company name in your order’s billing details, or the billing person’s full name when no company is provided, and delivered to your order’s email address. No separate email request is needed.

Windows security notice: C2C DNC is currently distributed without a code-signing certificate. Windows may display a blue “Windows protected your PC” SmartScreen message because the download is unsigned or has not yet built enough reputation with Microsoft. This warning alone does not mean malware has been detected, and it is not a guarantee of safety either. If you downloaded C2C DNC directly from Concepts2Creations or received your personalized copy from us and trust the source, select More info, then Run anyway if Windows offers that option. Keep your antivirus protection enabled. If Windows reports a specific threat or does not offer this option, contact hello@concepts2creations.com for help.

Browse all software and digital downloads from Concepts2Creations.

How to transfer CNC programs from your computer

New to serial transfers? Read our guide to transferring CNC programs from a PC over RS-232, covering adapters, cables, matching settings, sending a program, and common connection problems.
