NEW: We have added slots parallel to the length, allowing for movement in a new direction. This can enable a switch between short and long items in the rotary without entirely removing the screws.

note: Not all the pictures have been updated, please reference the main picutre.

⚡What is it?

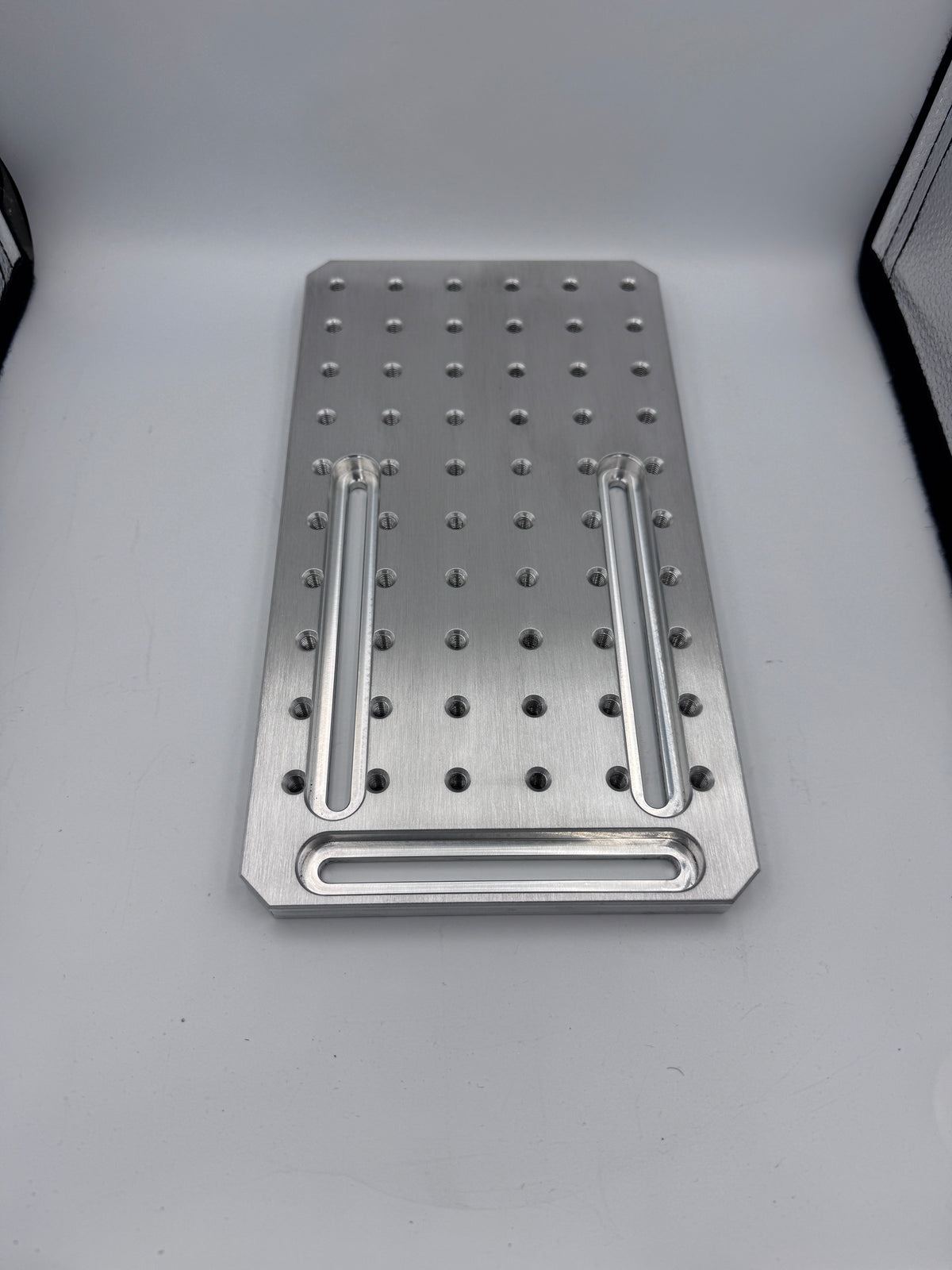

The fixture plate, sometimes called a pallet, is made from solid billet aluminum (6061 T6) and CNC machined in Canada.

⚡Why?
I wanted to make an affordable solution for the lack of enough tapped holes and the mounting issues on most import fiber lasers.

⚡What is Included: (everything else seen is for illustrative purposes)
1 piece - Fixture Plate (Approximate size 0.5" x 6" x 11.75")
4 pieces - M6 Screws
4 pieces - Washers

⚡Details:
The holes are drilled and tapped M6x1.0 with a 25mm grid pattern.
The slotted mounting allows adjustment to center your Rotary or anything else directly under the laser's head.
It can be mounted in any direction that you prefer to have your Rotary. The 2 that I use are shown in the pictures.
The slots are designed to be used with the included washers.

⚡ Other use ideas:
This fixture plate was originally designed for mounting the rotary, however I permanently mount different fixturing and swap out the pallet for repeat work.
Only a little fine-tuning is needed to center under the head.

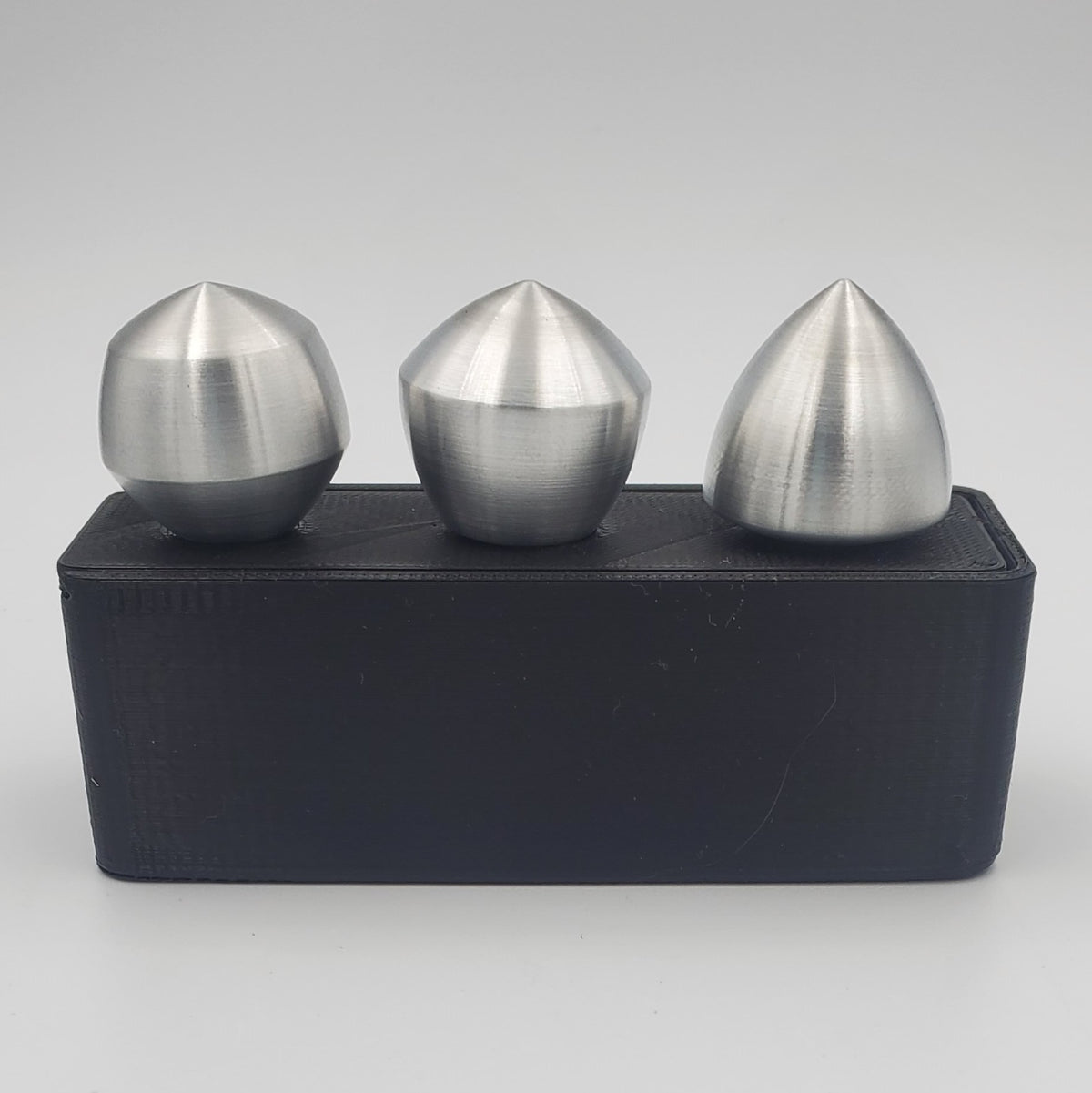

Set of three Cones of constant width. This model is based on a Triangle.

CNC machined in Canada out of brass or aluminum bar stock.
Approximately 1" in diameter.

These are machine finished and light hand polishing is done.

These are non-spherical solids that amazingly have constant width in every direction—allowing them to roll smoothly. They are derived from two-dimensional curves that were put into use by the 19th-century German engineer Franz Reuleaux.

Set of three Cones of constant width with one of each Triangle, Hexagon and a Heptagon.

CNC machined in Canada out of brass or aluminum bar stock.
Approximately 1" in diameter.

These are non-spherical solids that amazingly have constant width in every direction—allowing them to roll smoothly. They are derived from two-dimensional curves that were put into use by the 19th-century German engineer Franz Reuleaux.

Set of Cones of constant width. This model is the large size.

CNC machined in Canada out of brass or aluminum bar stock.
Approximately 1.75" in diameter.

These are machine finished and light hand polishing is done.

These are non-spherical solids that amazingly have constant width in every direction—allowing them to roll smoothly. They are derived from two-dimensional curves that were put into use by the 19th-century German engineer Franz Reuleaux.

Custom machined and hand polished brass worry coin.
Its concaved on one side and convex one the other.
perfect fit for your fingers, or spin or wobble on your desk.


Diameter: 1.5" / 38 mm
Weight = 1.5 oz / 42 grams





⚡What is it?
Business Card jig also known as a fixture is made from solid billet aluminum (6061 T6) and CNC machined in Canada.

⚡Why?
I wanted to make an affordable solution for engraving business cards that does not melt

⚡What is Included: (everything else seen is for illustrative purposes)
1 piece - business card Jig / Fixture (works with 110mm lens and up)
4 pieces - M6 Screws for mounting and for holding the cards in place

⚡Details:
The jig is designed to work with a M6x1.0 hole and a 25mm grid pattern.
The slotted mounting allows for adjustment to center directly under the lasers head.
when used in conjunction with the fixture plate that is sold separately, alignment is possible in both x and y under direction for easy alignment
There are 6 tapped holes for holding down those cards that just want to curl.

⚡What is it?
Windproof Lighter jig also known as a fixture is made from solid billet aluminum (6061 T6) and CNC machined in Canada.

⚡Why?
I wanted to make an affordable solution for engraving Lighters that does not melt or wear out

⚡What is Included: (everything else seen is for illustrative purposes)
1 piece - Windproof Lighter Jig / Fixture
4 pieces - M6 Screws for mounting

⚡Details:
VERY IMPORTANT: 39.15 mm x 57.5 are the dimensions of the pockets. Although not likely, please ensure your lighter is not bigger or it will not work with this jig.
Holds up to 6 lighters at a time
The jig is designed to work with a M6x1.0 hole and a 25mm grid pattern.
The slotted mounting allows for adjustment to center directly under the lasers head.
when used in conjunction with the fixture plate that is sold separately, alignment is possible in both x and y under direction for easy alignment
