Bobcat MT85 Aftermarket Idler Rebuild Kit

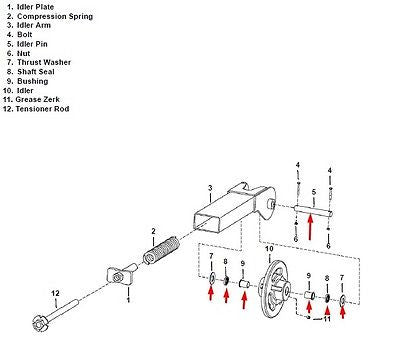

Complete aftermarket idler rebuild kit for the Bobcat MT85. It includes the pins, bushings, seals, thrust washers and protected grease-fitting bolts needed to rebuild the idler assemblies.

Current C2C design

• 8620 alloy-steel pins for improved durability.
• All pins include a grease channel and are serviced through our protected grease-fitting bolt.
• Universal cross pins fit both 6.25-inch and 6.5-inch on-centre cross-hole locations.
• High-load, oil-embedded 863 iron-copper bushings with 10% greater rated radial capacity and twice the maximum pressure rating of comparable standard 841 bearing-bronze bushings. Their increased iron content gives them their distinctive silver appearance.
• High-quality brand-name seals.

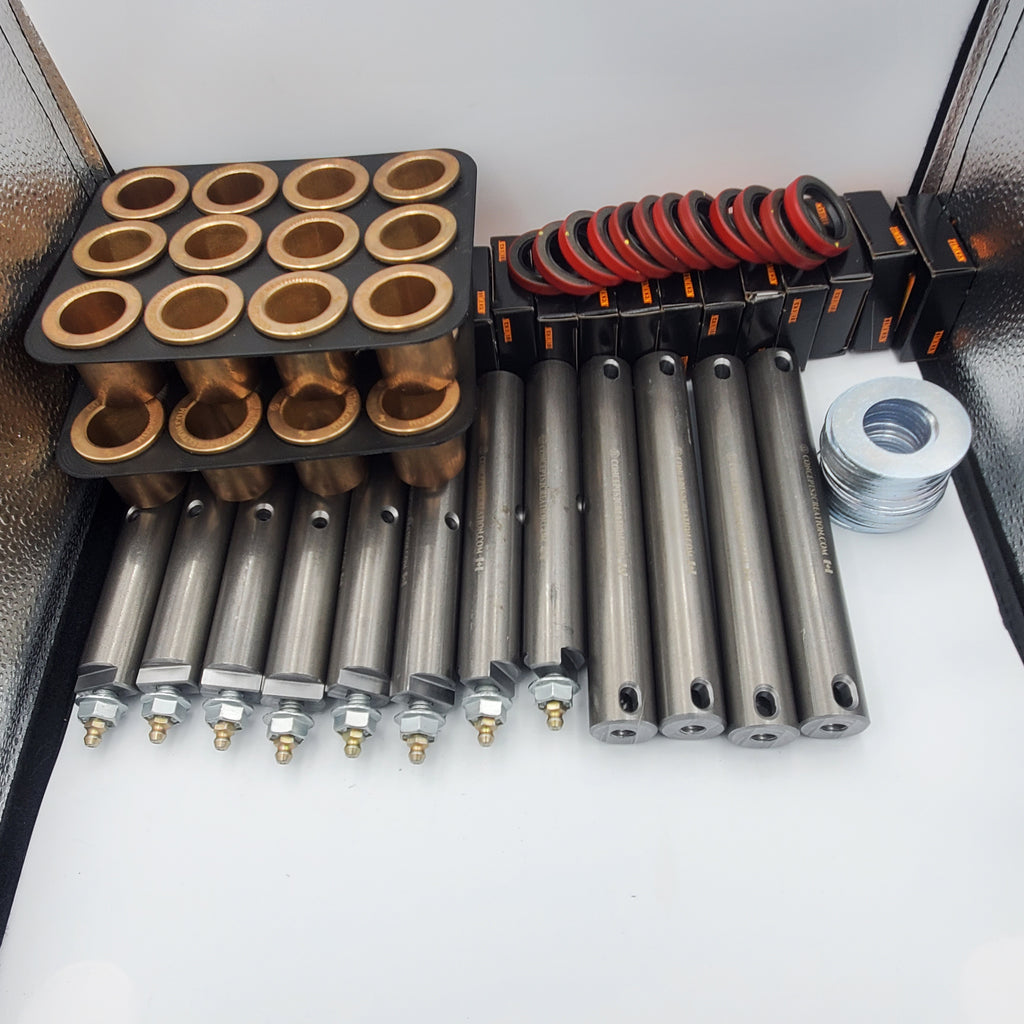

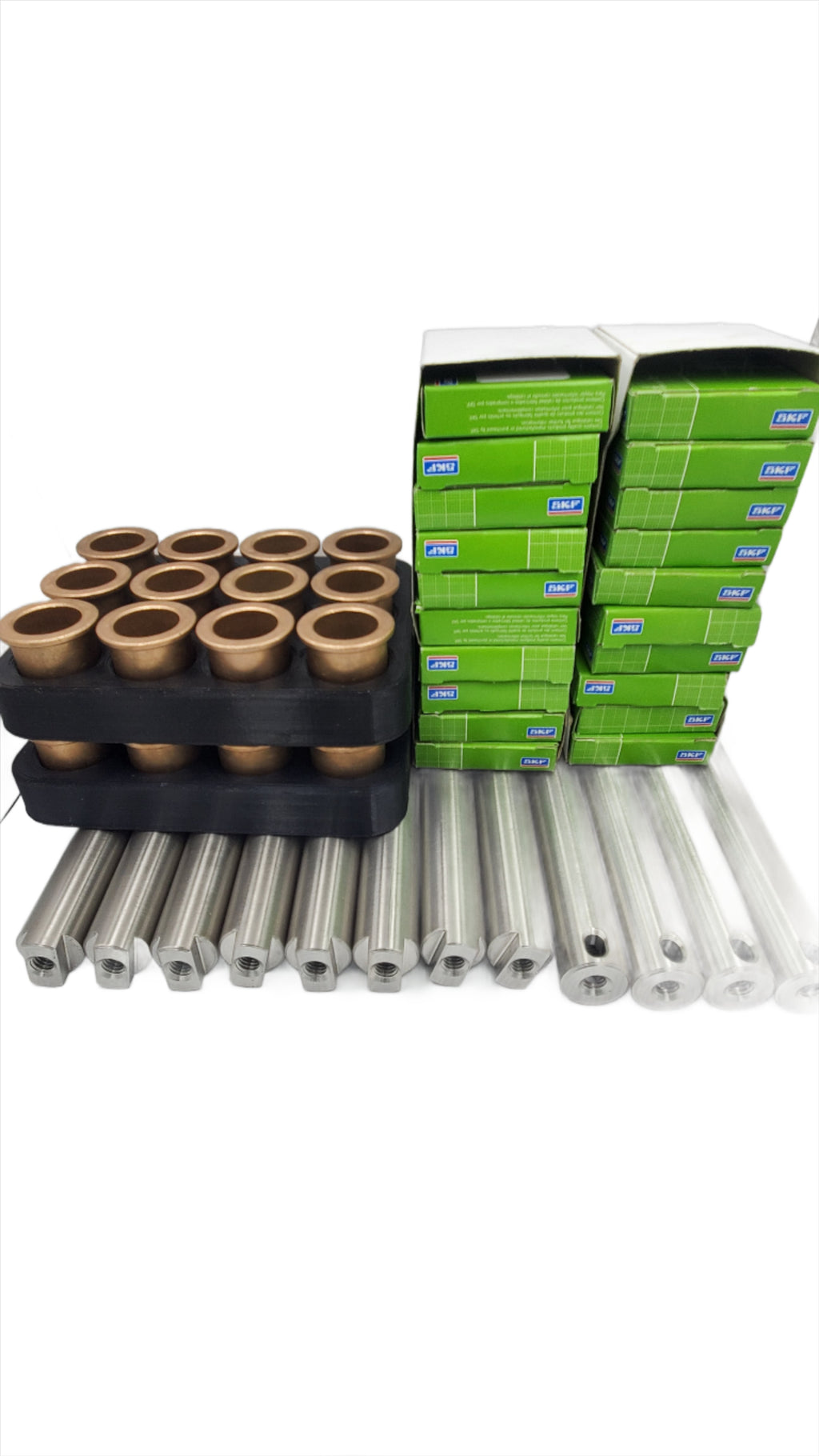

Kit includes

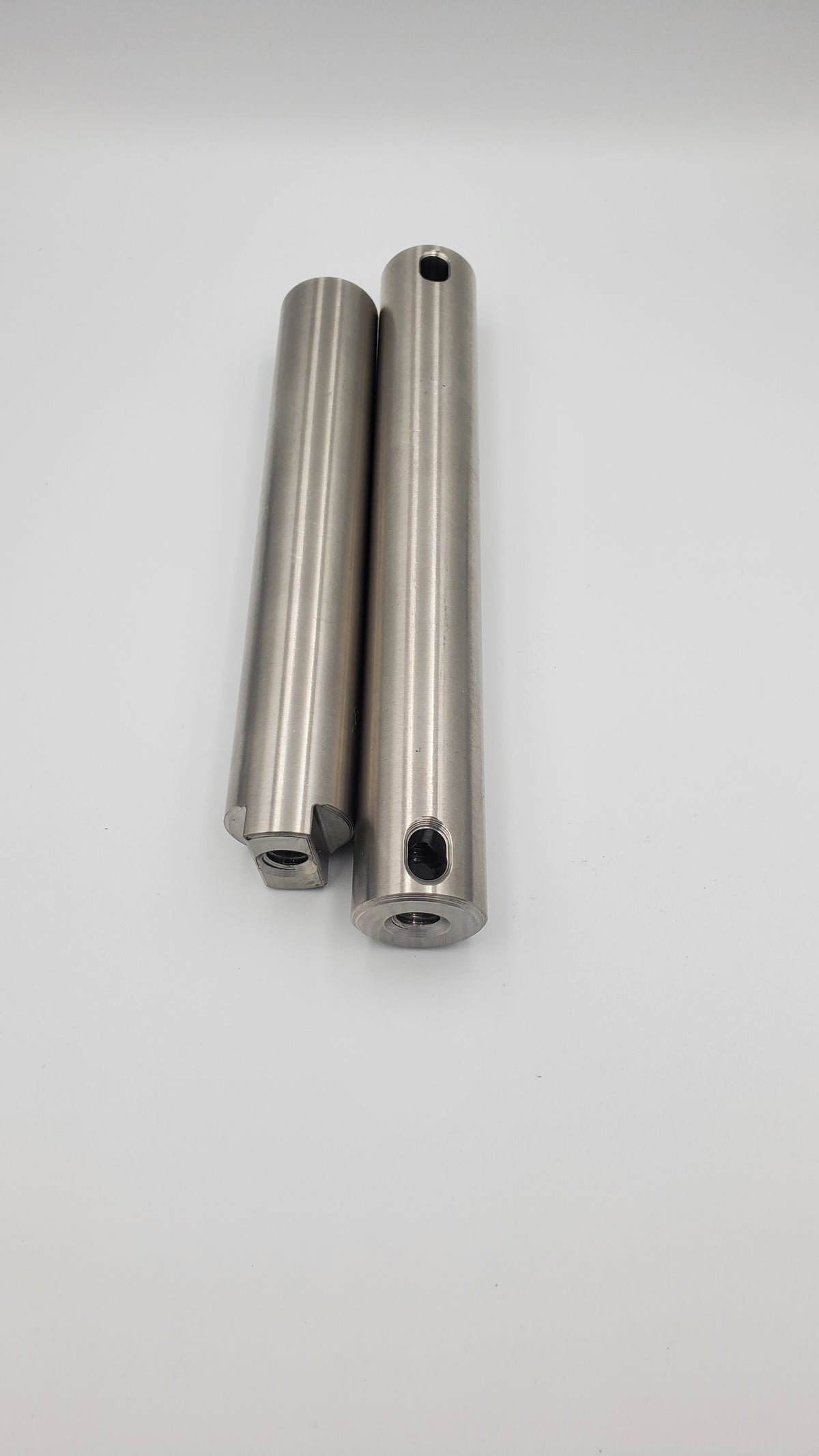

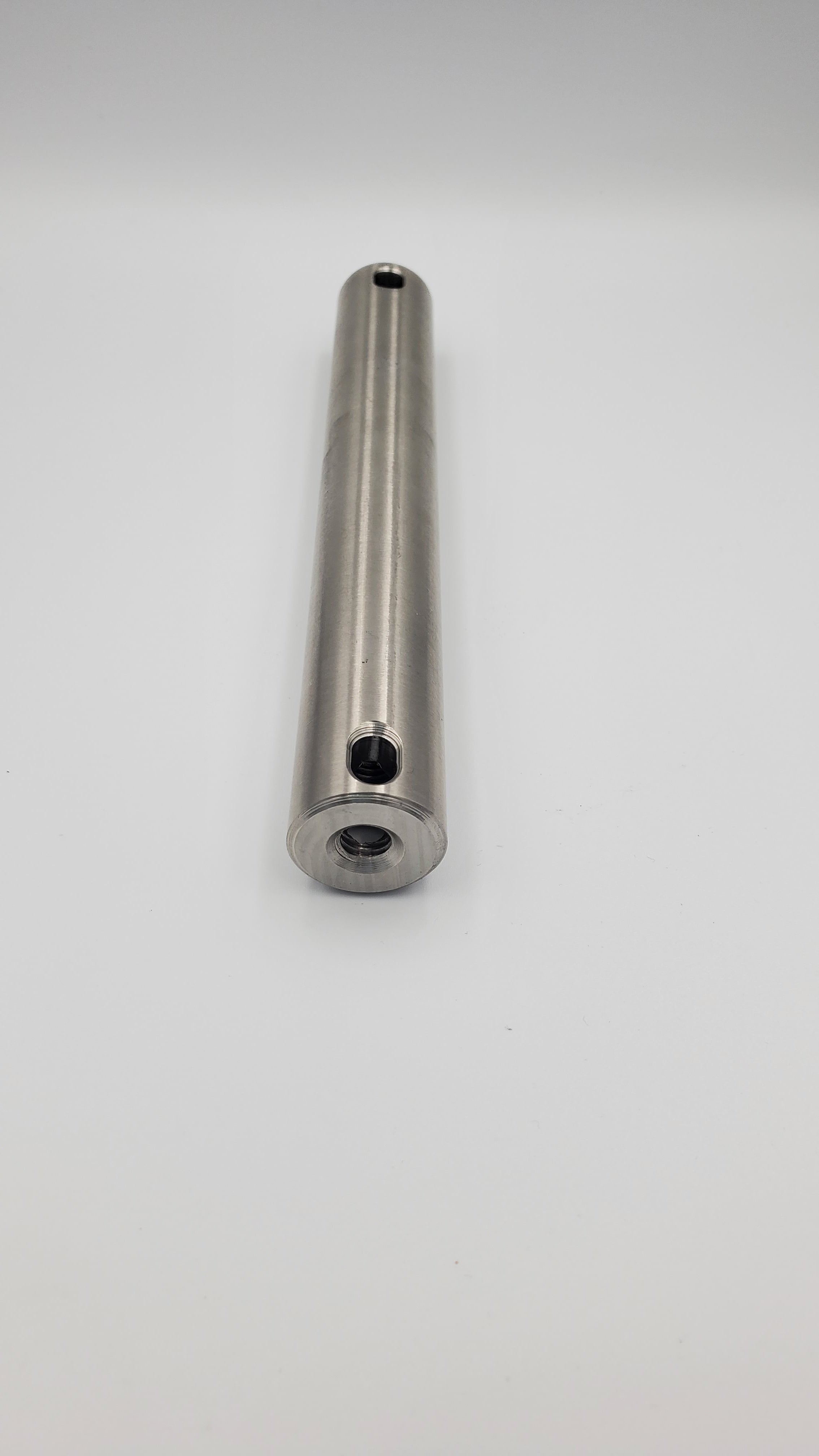

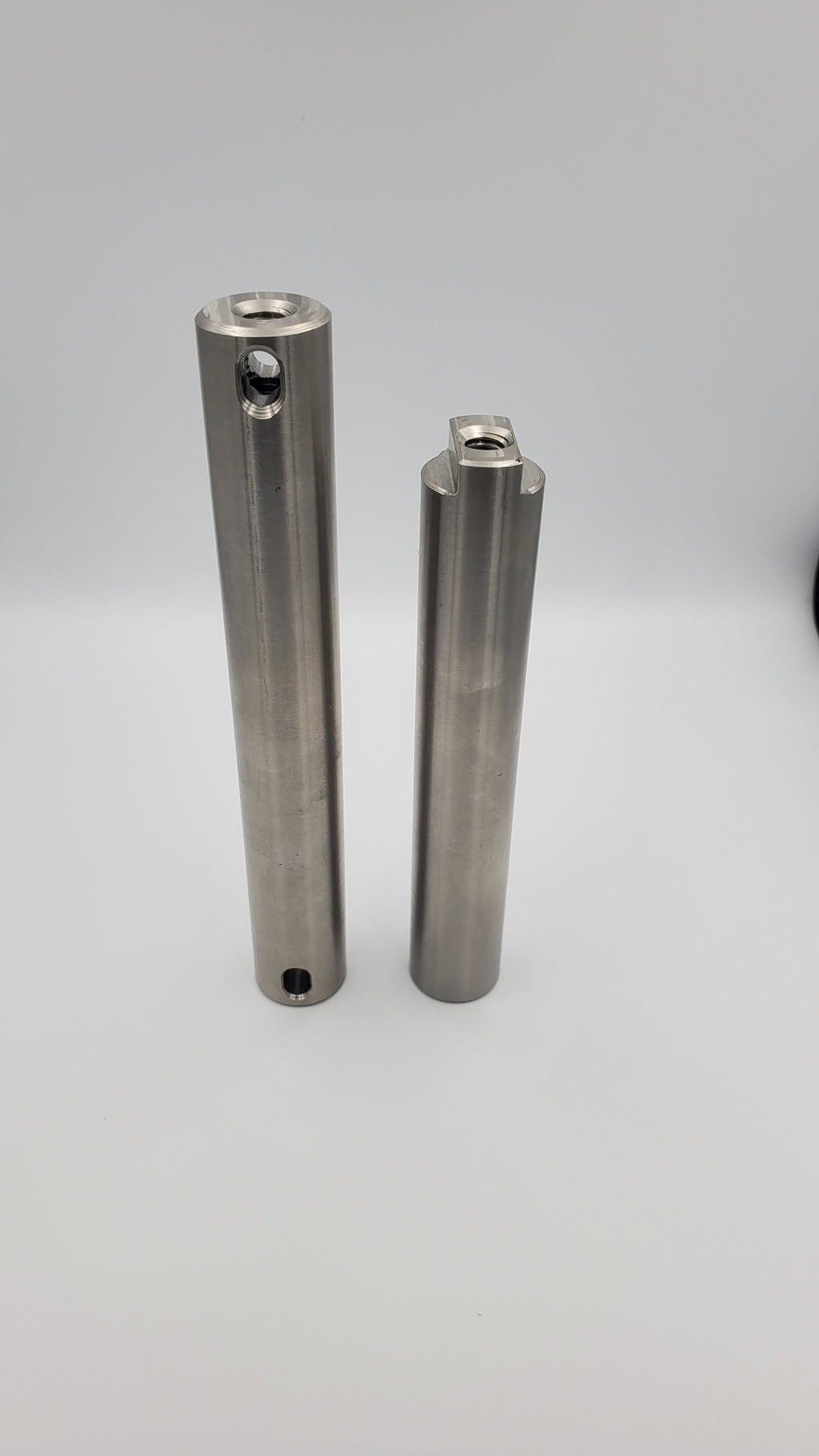

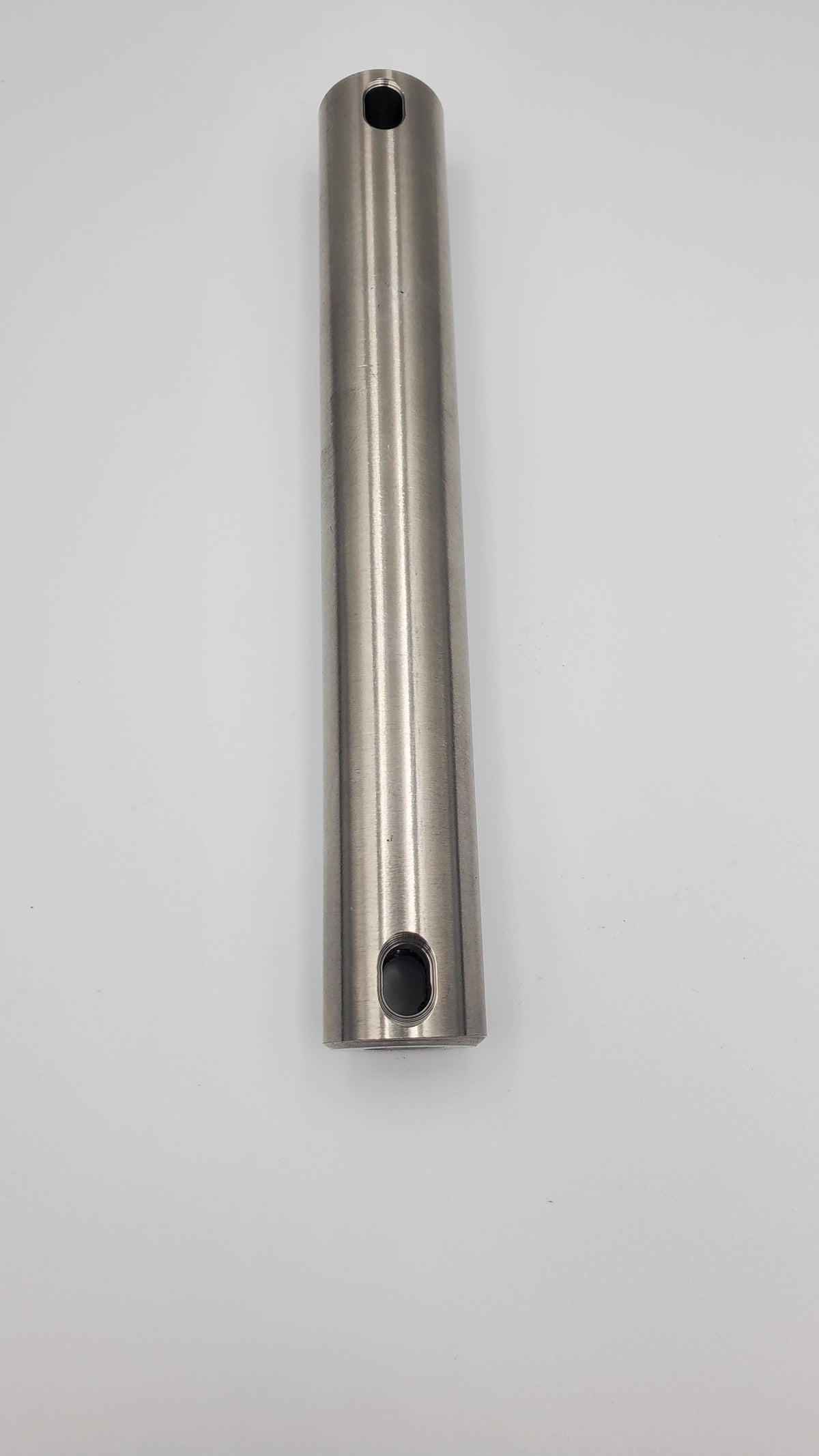

• 4 × 1-inch diameter × 7.125-inch universal cross-hole pins (7100963).

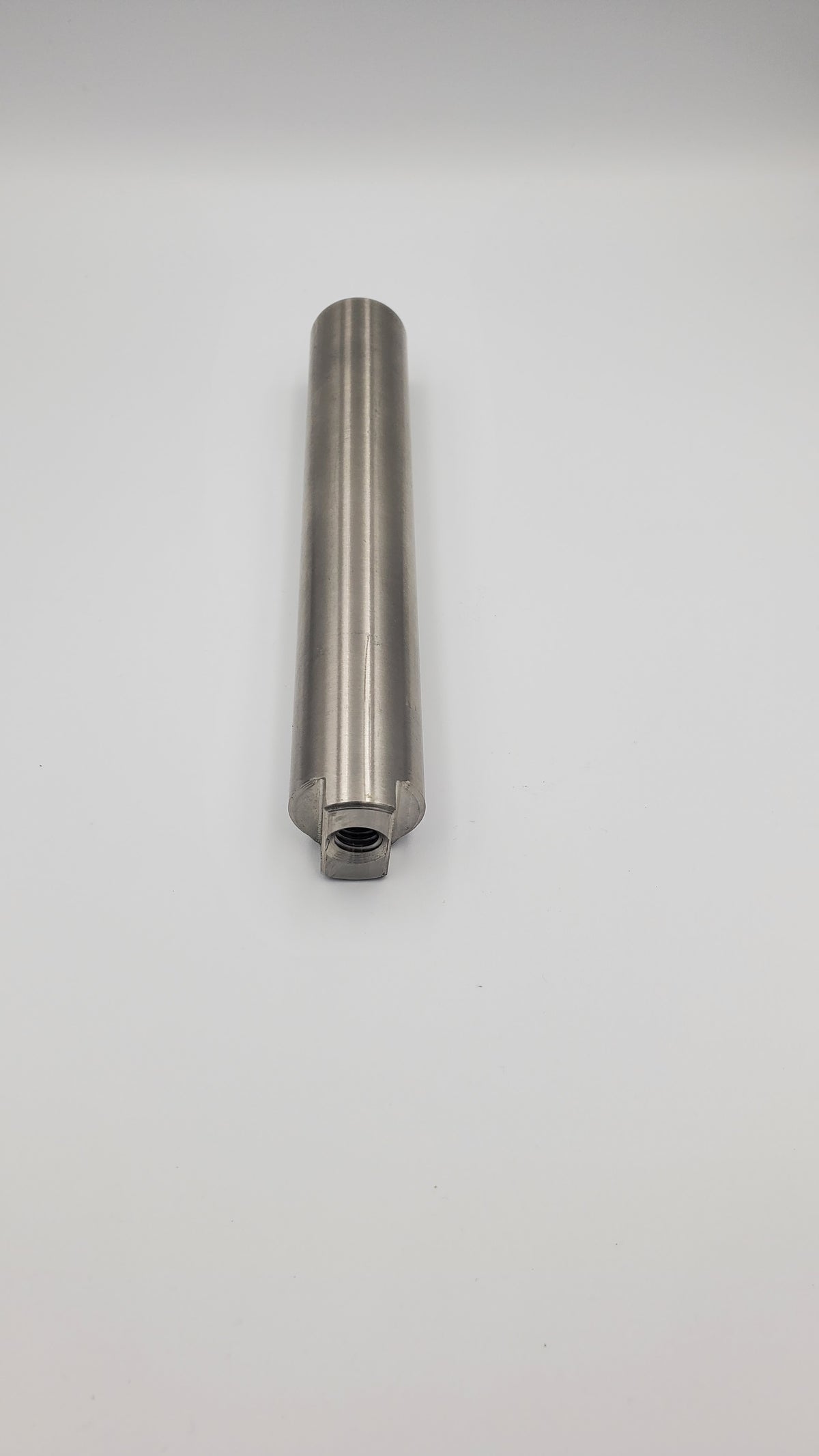

• 10 × 1-inch diameter × 6.125-inch keyed pins with grease channel (6730702).

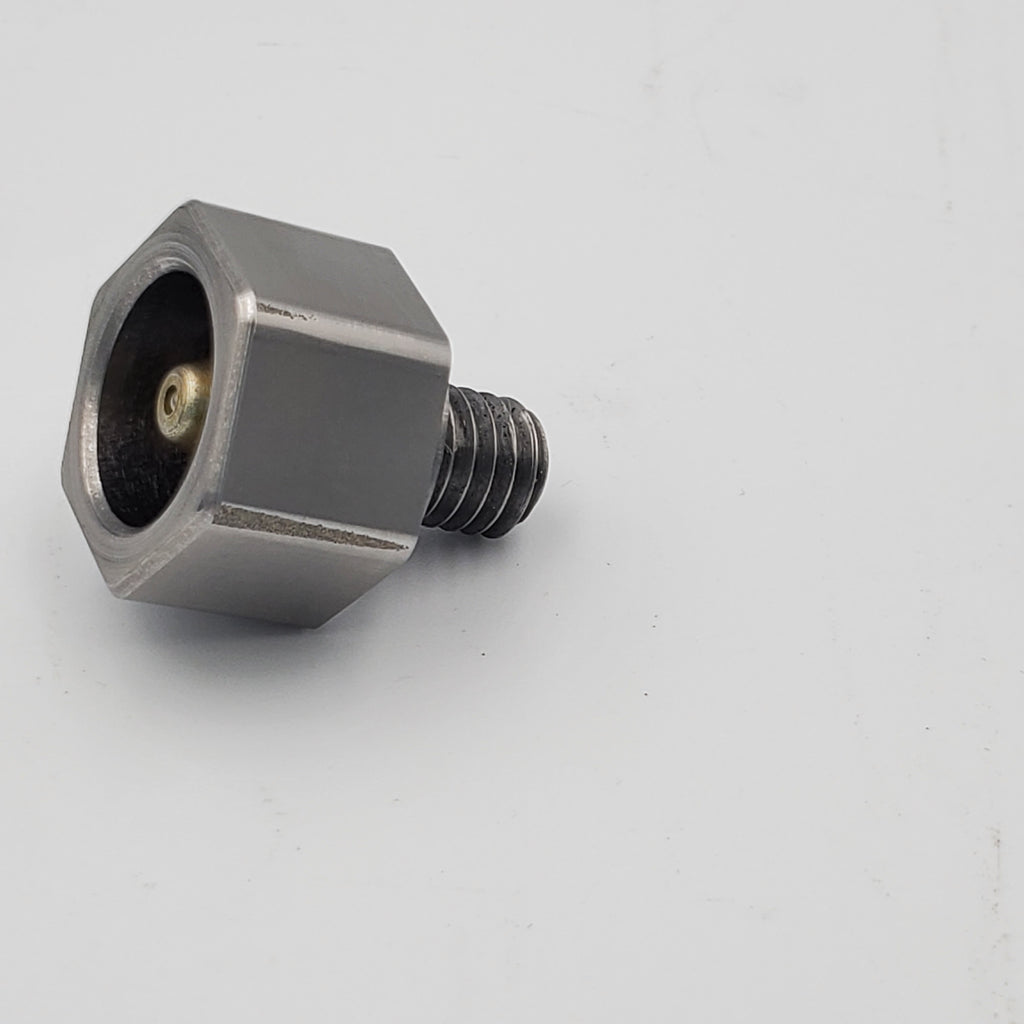

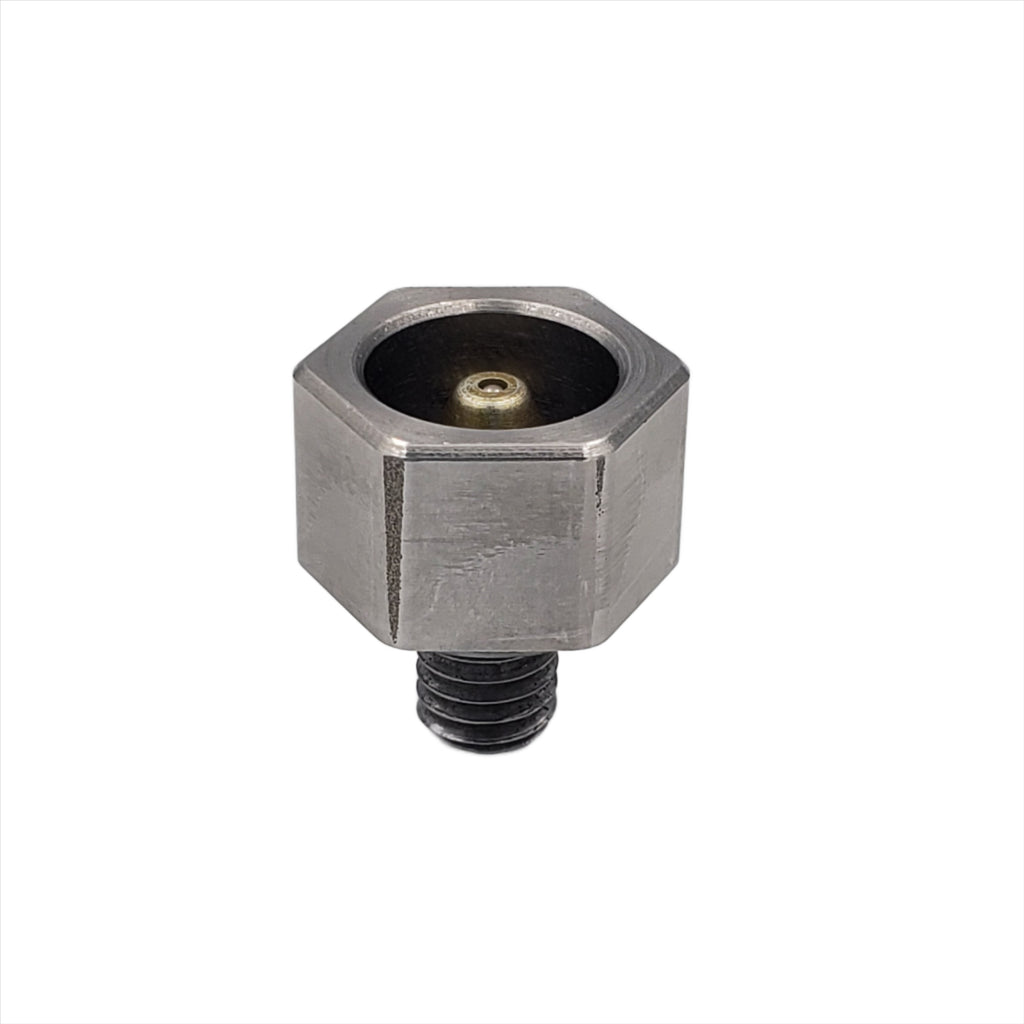

• 14 × protected grease-fitting bolts.

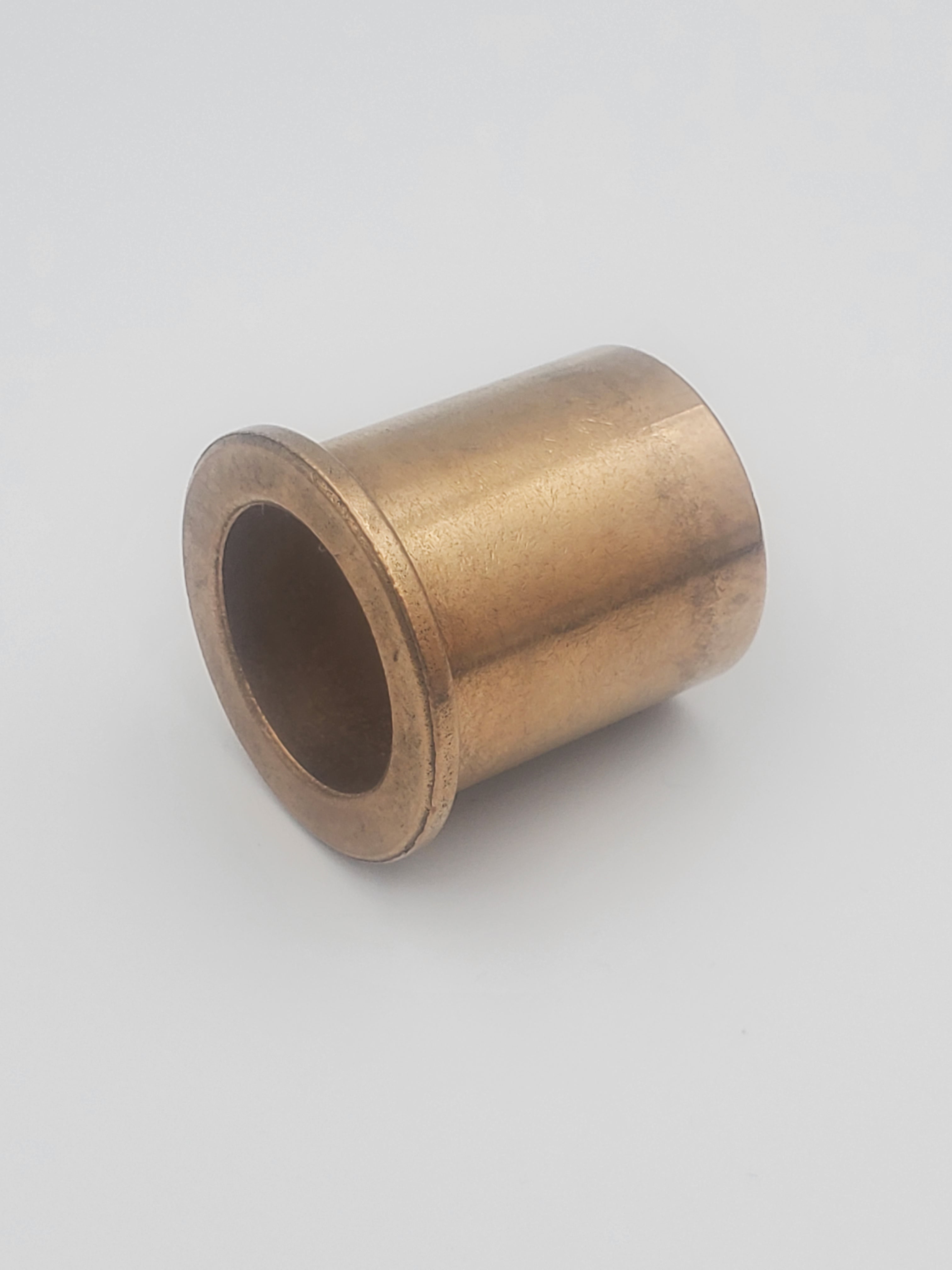

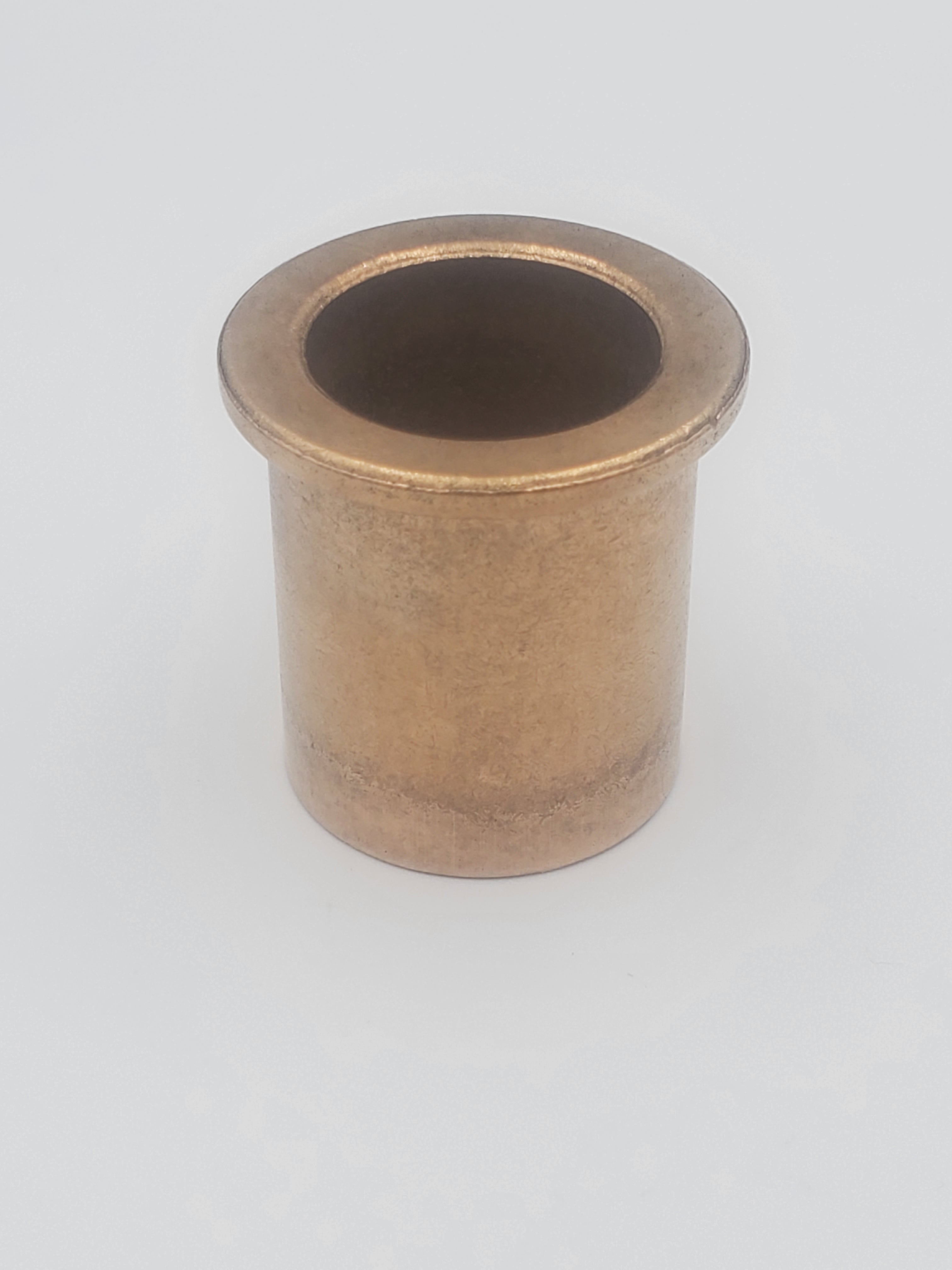

• 28 × high-load, oil-embedded 863 iron-copper bushings (6732271).

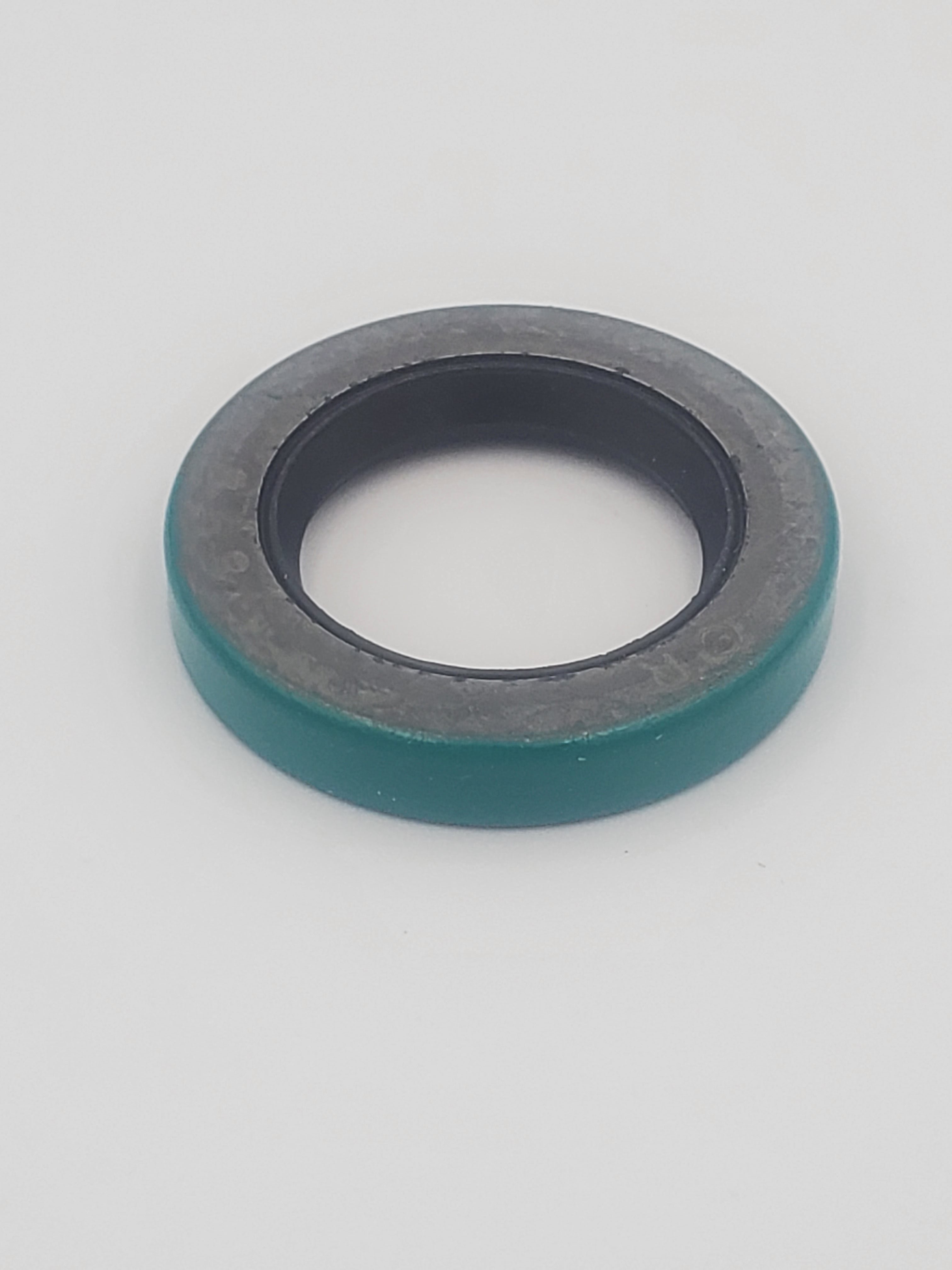

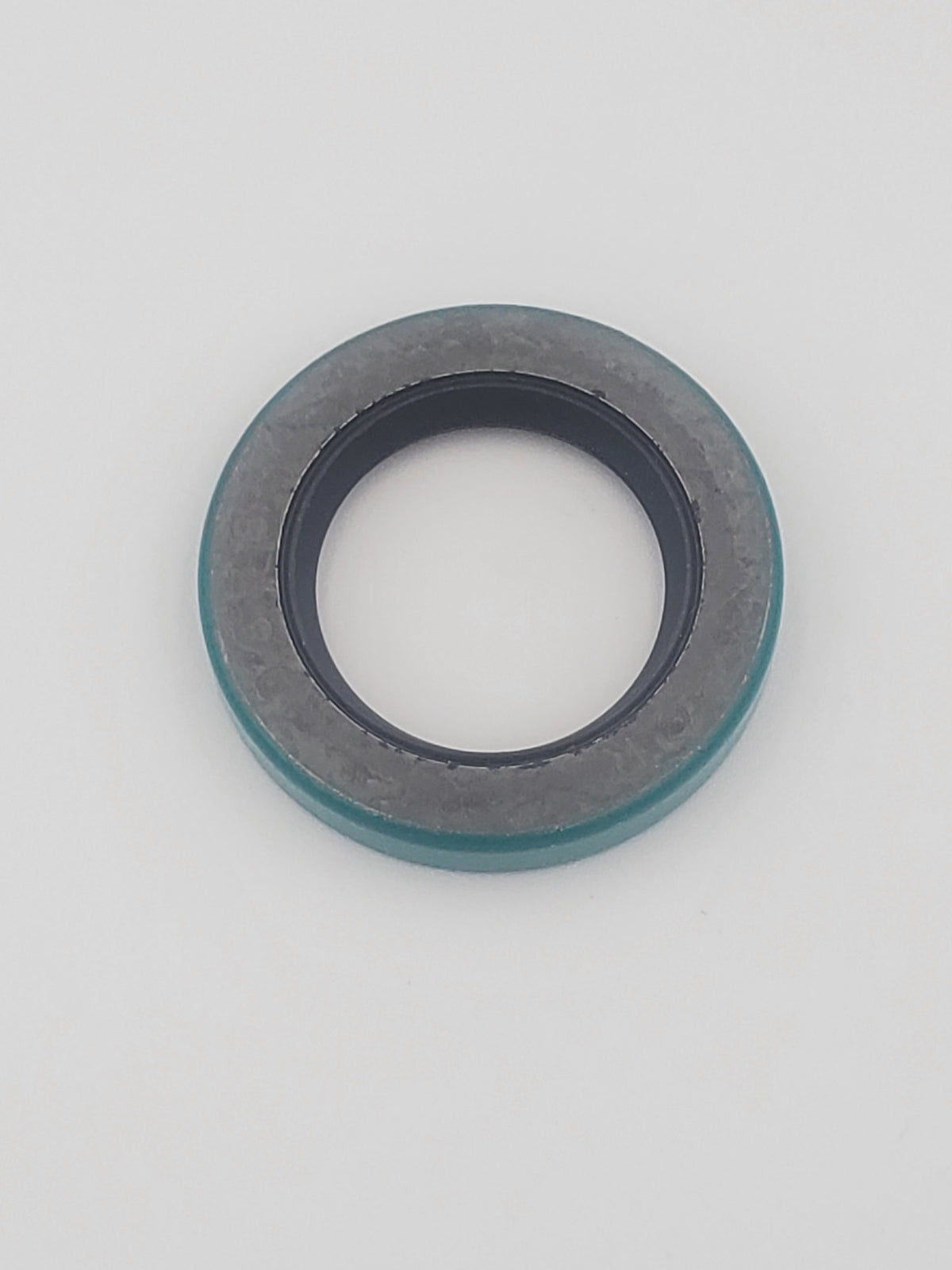

• 28 × seals (7325259, previously 6679135).

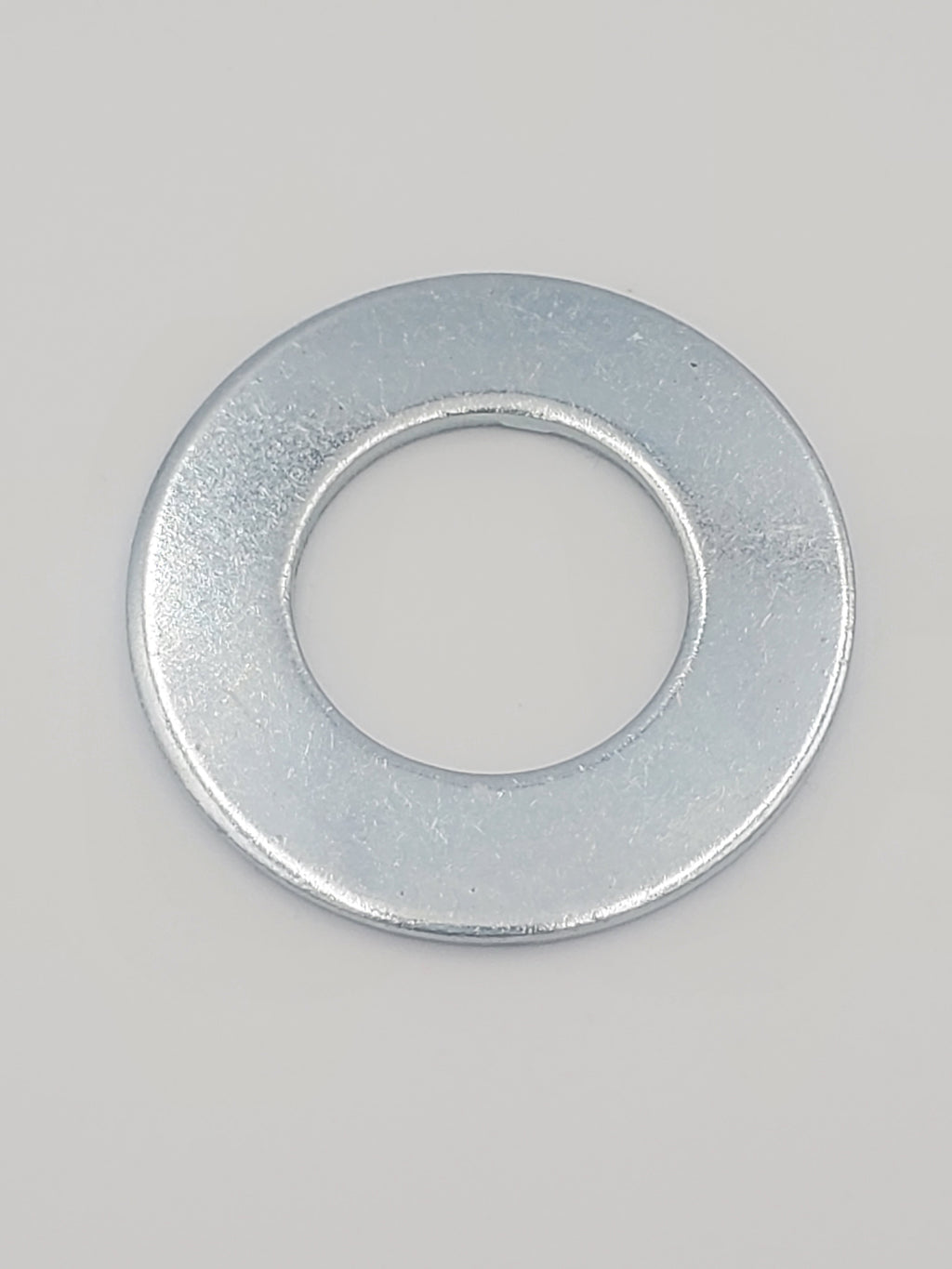

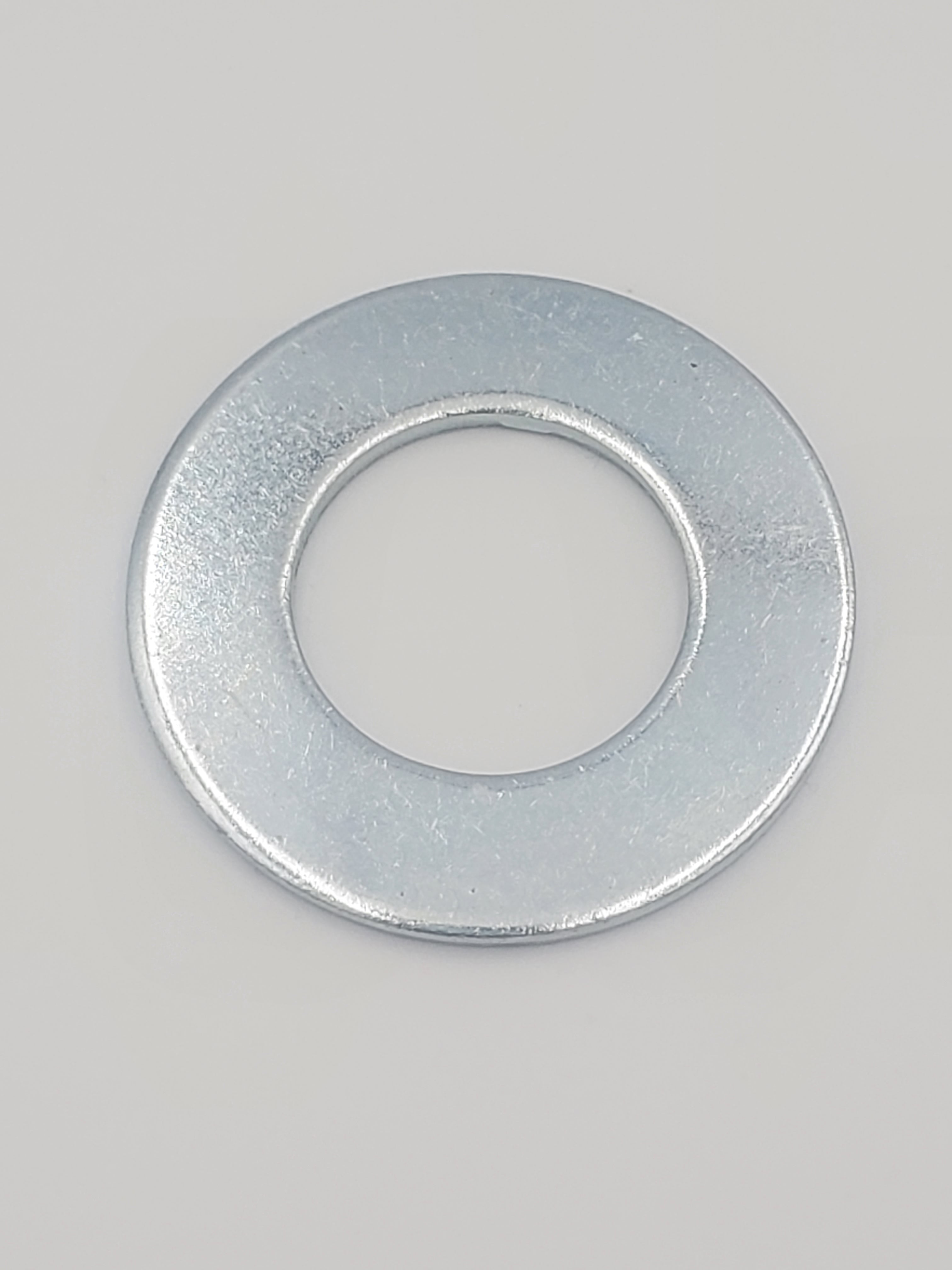

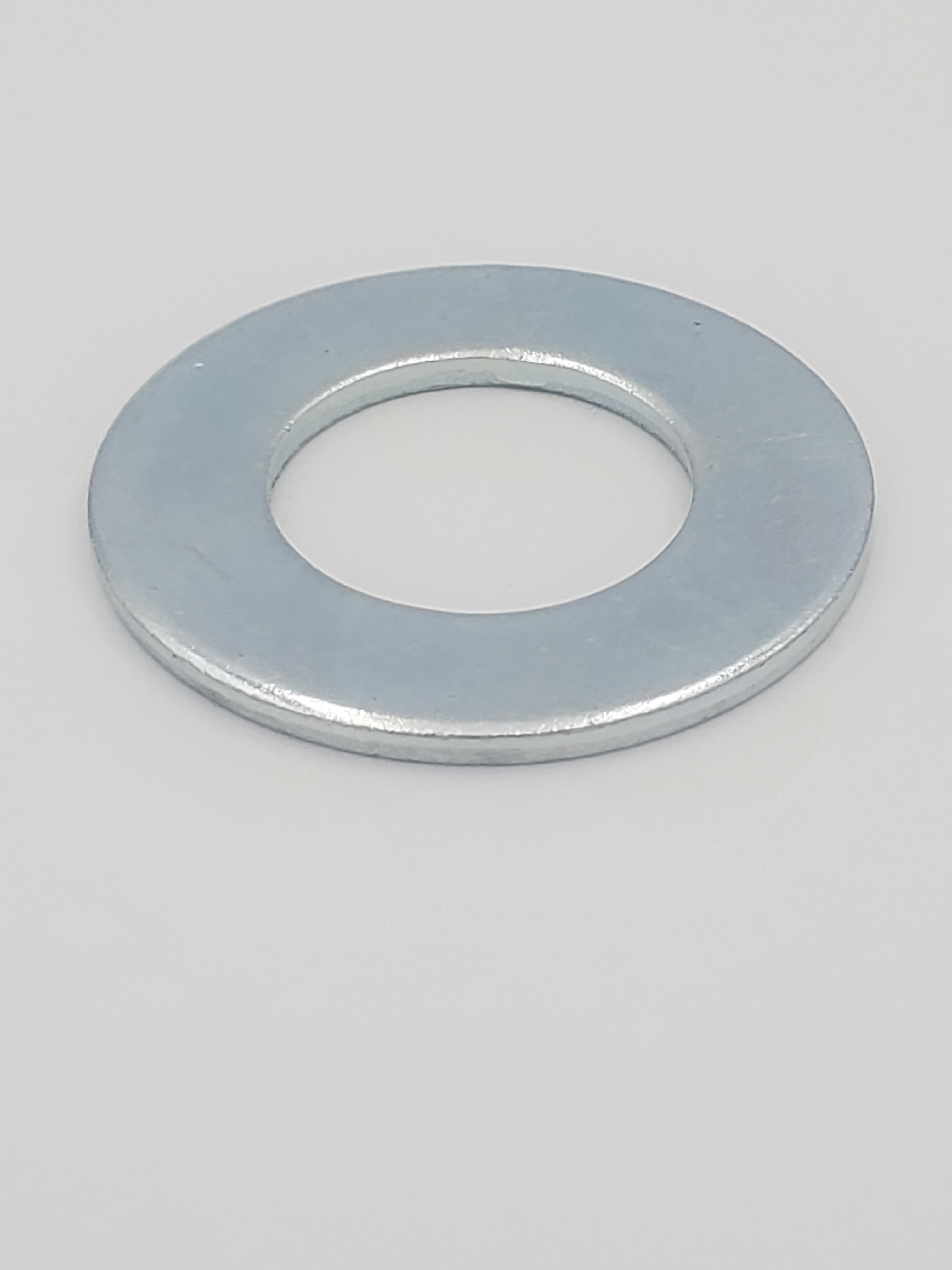

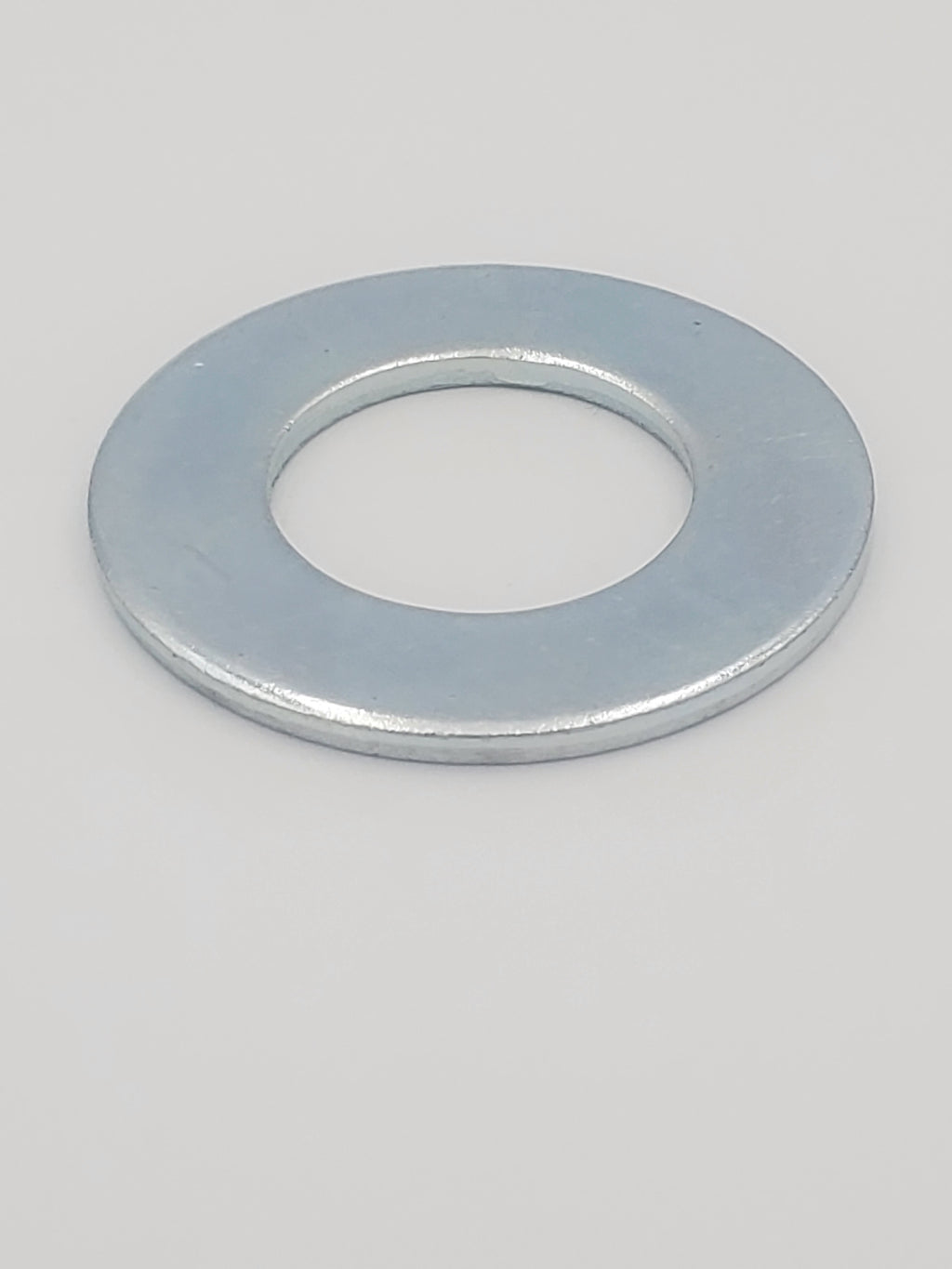

• 28 × thrust washers (6732013).

Need individual components or a different quantity? See our Bobcat MT replacement-parts listings or contact us.

CNC machined in Canada. We use North American materials whenever possible.
